Waste Collection Grapples

LIGHTWEIGHT DESIGN, HEAVYWEIGHT PERFORMANCE

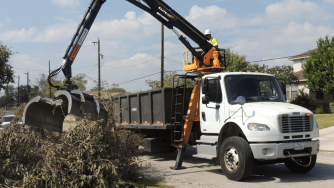

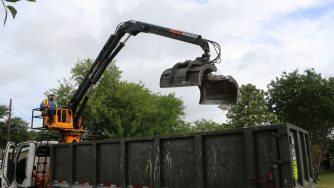

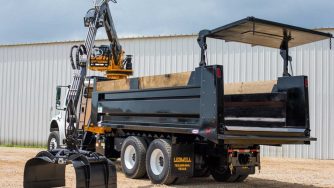

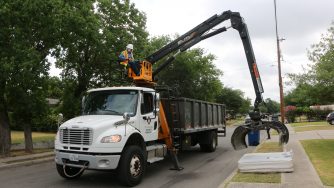

Rotobec’s line of Light Duty Grapples includes our Multi-Purpose Grapple and the very popular Waste Collection Grapple. These lightweight attachments are ideally mounted on self loaders and can be used to pick up every material imaginable. They are commonly used on municipal vehicles for waste pickup and storm clean up. They are available with both high and low pressure cylinders and in a variety of sizes, allowing for installation on every type of loader or excavator. If you are in need of a do-everything attachment, there is a Rotobec Light Duty Grapple ready for the challenge.

the king of rotators

WE’RE CALLED ROTO-BEC FOR A REASON

For the last 40 years, Rotobec has been pushing the boundaries of innovation in the world of rotator design. In addition to standard 3600 rotation and a fully supported pinion gear, all of our rotations are fully sealed, allowing them to be fully submersed in up to 15 feet of water. Why settle for anything but the best?

QUALITY CONTROL

BUILT IN-HOUSE CYLINDERS

Each Rotobec cylinder is designed, fabricated and assembled in-house to guarantee the absolute best quality. Our Waste Collection Grapples come standard with our 3,500 psi (241 bar) cylinders, which offer exceptional closing force and an unbeatable level of durability.

Series Waste Collection Grapple 030W

Technical Data

Height (open/excluding rotation)

27 in

Weight (excluding rotation)

720 lb

Area (tip to tip)

3.23 ft2

Open

54.50 in

Close

36.75 in

Series Waste Collection Grapple 040W

Technical Data

Height (open/excluding rotation)

32 in

Weight (excluding rotation)

770 lb

Area (tip to tip)

4.60 ft2

Open

54.75 in

Close

44.75 in

Series Waste Collection Grapple 045W

Technical Data

Height (open/excluding rotation)

31 in

Weight (excluding rotation)

900 lb

Area (tip to tip)

5.75 ft2

Open

72.50 in

Close

48 in

Series Waste Collection Grapple 060W

Technical Data

Height (open/excluding rotation)

36 in

Weight (excluding rotation)

1,300 lb

Area (tip to tip)

8.00 ft2

Open

75.75 in

Close

57.50 in

Series Waste Transfer Grapple 30WAS

Technical Data

Height (open/excluding rotation)

29 in

Weight (excluding rotation)

860 lb

Volume

10.80 ft3

Open

59 in

Series Waste Transfer Grapple 38WAS

Technical Data

Height (open/excluding rotation)

29 in

Weight (excluding rotation)

980 lb

Volume

13.50 ft3

Open

59 in

Series Waste Transfer Grapple 47WAS

Technical Data

Height (open/excluding rotation)

29 in

Weight (excluding rotation)

1,100 lb

Volume

16.20 ft3

Open

59 in

out-lift

The Waste Collection Grapple features an EXTRA WIDE JAW allowing for easy collection of scattered materials on the ground in a single motion.

out-perform

Each model offers CONTINUOUS 3600 ROTATION of the grapple meaning that you can clear large areas without needing to re-position your loader.

out-last

Our Waste Collection Grapples feature both HIGH PRESSURE and LOW PRESSURE options and the cylinders are manufactured with a BOLT-ON-HEAD design which results in unbelievably simple maintenance.

Quality components

In order to guarantee the quality and reliability of your material handling equipment, we proudly manufacture and assemble every major component of our grapples in-house, right here in North America. Each component is constructed of only the best quality materials available, and is built with one purpose: To outperform and outlast the competition.

Service made simple

Our number one priority is your productivity. Machine downtime is a costly inconvenience and we have taken every measure to ensure that our customers experience as little of this as possible. Our expert team of service technicians are conveniently located all across North America and are dedicated to providing our customers with the best service in the business.

custom projects heading onlyRotobec has been designing and manufacturing material handling equipment, including grapples, rotations and loaders, for 40 years. During that time, our engineers have worked on several projects for customers with unique requirements that the competition could simply not meet. Our team worked closely with these customers to provide them with an exceptional solution to meet those needs.

If you have a requirement that is not met by our current product let us know. Rotobec is open to any custom project and we are always looking for a new challenge.
