ELITE LOAD N’ GO

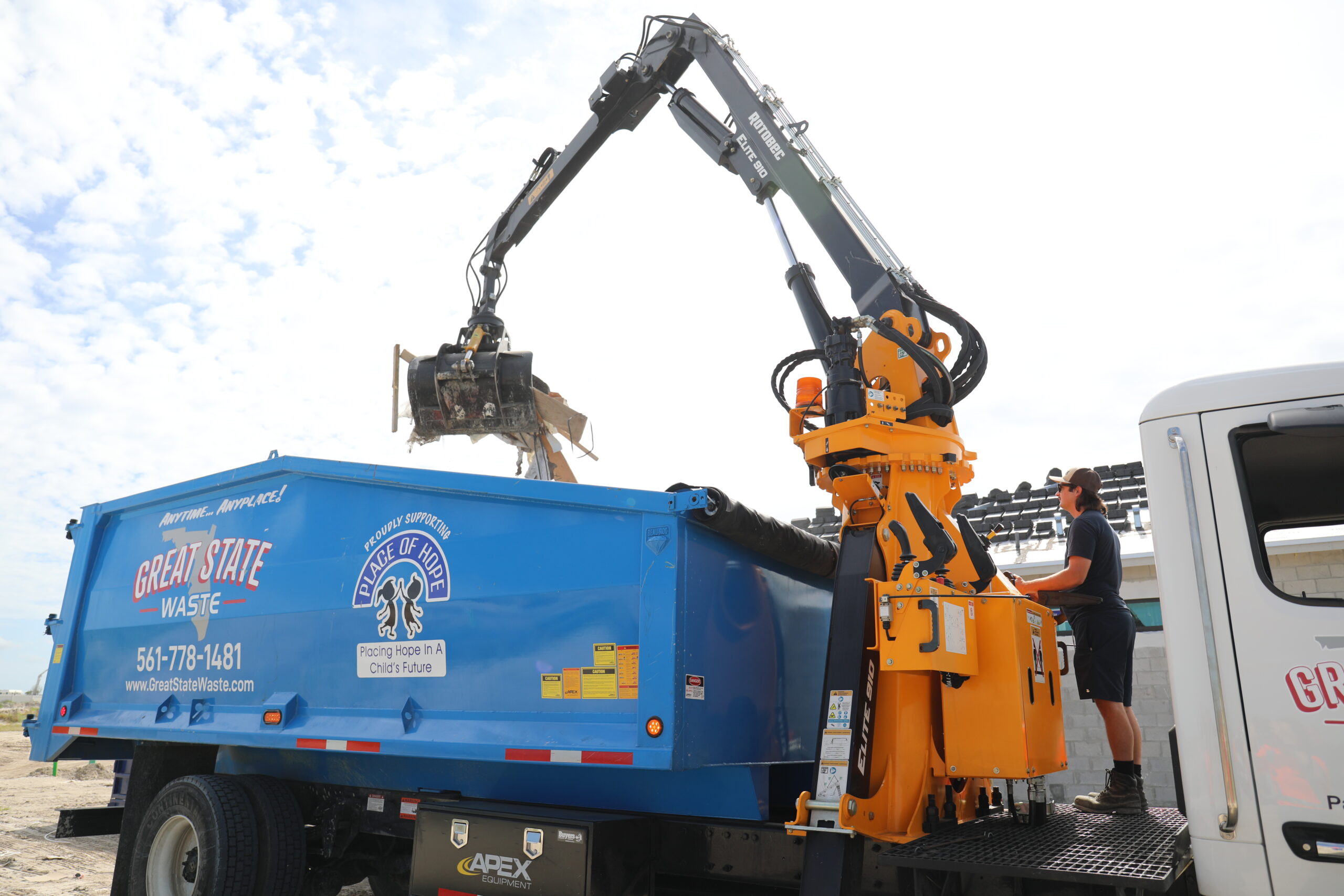

Introducing the Rotobec Elite Load N’ Go loader: Revolutionizing Municipal and Tree Care Operations.
A Little Giant with Unbeatable Strength.
Spend less time repositioning your knuckleboom loader and more time working with the Rotobec Elite 910. This lightning-fast loader ensures ultimate efficiency with precision and agility, ideal for municipal and tree care settings. The Rotobec Elite Load N’ Go loader offers unparalleled functionality, operator comfort, and durability. With the lowest cost of ownership, Rotobec Elite Loaders save you money and boost productivity. Experience the future of efficient debris collection today.
02 Features
Streamlined Integration
Positioned behind the cab, the Rotobec Elite Load N’ Go exemplifies meticulous engineering, ensuring seamless integration into your fleet while maximizing both space and functionality.
Operator-Centric Design
Featuring intuitive controls for the operator and a design focused on operator comfort, this loader guarantees peak productivity and unparalleled comfort, even during extended operational hours. Dealers will provide a tailored platform to meet your specific needs.
Crafted for Durability
Embodying Rotobec’s renowned craftsmanship, the Elite Load N’ Go upholds a legacy of excellence, delivering unmatched quality and reliability for years to come, even in the harshest environments.
Effortless Urban Cleanup
Tailored for urban settings, this versatile combination effortlessly maneuvers through city streets while efficiently gathering debris of all types and sizes, courtesy of its 21′ reach and robust 8500 lbs. lifting capacity.
Built to Last
The Elite Load N’ Go optimizes durability and resilience, promising enduring performance under the daily demands of usage with effortless ease.
03 Specs
Elite Load N' Go
- Main boom: Rectangular 152.4 mm x 203.2 mm structure made of high-tensile steel
- Stick boom: Rectangular 152.4 mm x 152.4 mm structure made of high-tensile steel
- Main boom: Rectangular 6” x 8” structure made of high-tensile steel
- Stick boom: Rectangular 6” x 6” structure made of high-tensile steel
- Main boom: 9 sec w/57 lpm
- Stick Boom: 7.5 sec w/57 lpm
- Main boom: 9 sec w/15 gpm
- Stick Boom: 7.5 sec w/15 gpm
- Main boom: 210 bar
- Stick boom and loader swing: 221 bar
- Main boom: 3,045 psi
- Stick boom and loader swing: 3200 psi
- Theoretical: 21,675 Nm @ 207 bar
- Actual: Estimated at 18,424 Nm
- Theoretical: 15,987 ft. lb @ 3,200 psi
- Actual: Estimated at 13,589 ft. lb
- Continuous 360° rotation
- Locking mechanism for transportation mode
- Continuous 360° rotation
- Locking mechanism for transportation mode
- Induction tempered, chrome steel pins on bronze bushings
- Telescopic booms activated by electric button and proportionately controlled by lever
- 2 x LED work lights
- Main boom cylinder: 5” (127 mm) bore, 2.5” (63.5 mm) rod
- Stick boom cylinder: 5” (127 mm) bore, 2.5” (63.5 mm) rod
- Induction tempered, chrome steel pins on bronze bushings
- Telescopic booms activated by electric button and proportionately controlled by lever
- 2 x LED work lights
- Main boom cylinder: 5” (127 mm) bore, 2.5” (63.5 mm) rod
- Stick boom cylinder: 5” (127 mm) bore, 2.5” (63.5 mm) rod
- Bolt-on head
- Wear ring
- Chrome plated tempered steel rod
- Counterbalance valve on main boom and stick cylinders
- Bolt-on head
- Wear ring
- Chrome plated tempered steel rod
- Counterbalance valve on main boom and stick cylinders
- Double function joystick
- 2 x 15 gpm (56.7 lpm) @ 1,350 rpm pump flow
- 12 port hydraulic oil manifold
- Double function joystick
- 2 x 15 gpm (56.7 lpm) @ 1,350 rpm pump flow
- 12 port hydraulic oil manifold
- Centralized greasing system for loader head
- Horn
- Beacon light when loader is operating
- Boom up signal for transportation position
- Operator presence lever and E-Stop signal to shut down loader pumps
- Mirrors for better visibility along truck bin
- Armrest
- Centralized greasing system for loader head
- Horn
- Beacon light when loader is operating
- Boom up signal for transportation position
- Operator presence lever and E-Stop signal to shut down loader pumps
- Mirrors for better visibility along truck bin
- Armrest
